Nitto Super Coupler Mating Mounting Size R1/4 (04414) 02SF STEEL NBR 1 piece

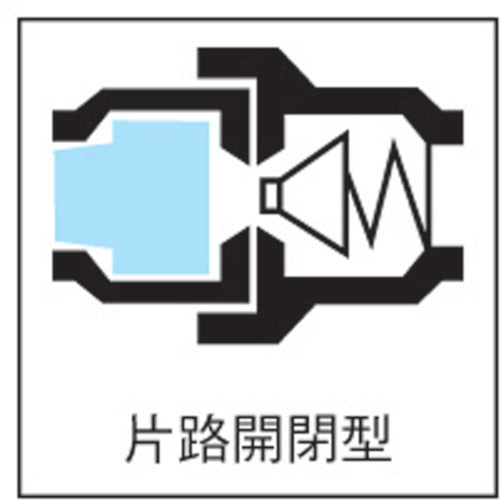

Catalog number: 02SF STEEL NBR Features: ●Small and lightweight type. ●One-touch connection by simply pushing. Boasts one-handed operability. ●Lightweight design suitable for hand tool hand connection. To reduce weight, some of the body materials are made of aluminum alloy. ●Plug and socket connection is one-touch connection by simply pushing. ●Various mounting shapes are standardized to accommodate a wide range of pneumatic applications. In addition, the 02S20P type can be connected to "High Coupler" (10 type, 17 type, 20 type, 30 type, 40 type, 60 type) sockets. ●Also available with "Tube Fitter". Specifications: ●Pressure resistance (MPa): 1.5 ●Matching side mounting size: R1/4 ●Usable fluid: Air ●Maximum operating pressure (MPa): 1.0 ●Usable temperature range (℃): -20 to 80 ●Matching side mounting screw size: R 1/4 ●One-way opening and closing type ●Compatible fitting: Nitto Kohki Super Coupler type ●Valve structure: One-way opening and closing type ●Lightweight design makes it the best match for hand tools. ●One-touch connection provides excellent operability. Material/Finish: ●Body: Steel (chrome plated) ●Seal rubber: Nitrile rubber (NBR)
