Nitto Super Coupler Mating Size (04411) 02SH STEEL NBR 1 piece

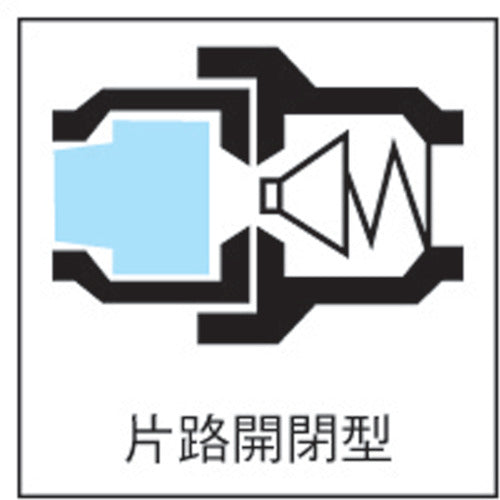

Catalog number: 02SH STEEL NBR Features: ●Small and lightweight type. ●One-touch connection by simply pushing. Boasts one-handed operability. ●Lightweight design suitable for hand tool connection. To reduce weight, some of the main body materials are made of aluminum alloy. ●Plug and socket connections are one-touch connection by simply pushing. ●Various mounting shapes are standardized to accommodate a wide range of pneumatic applications. ●Also available with "tube fitter". Specifications: ●Pressure resistance (MPa): 1.5 ●Mating hose size (inch): 1/4 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -20 to 80 ●Mating hose size: 1/4 ●One-way opening and closing type ●Compatible fitting: Nitto Kohki Super Coupler type ●Valve structure: One-way opening and closing type ●Lightweight design makes it the best match for hand tools. ●One-touch connection provides excellent operability. Material/Finish: ●Main body: Steel (chrome plated) + aluminum ●Seal rubber: Nitrile rubber (NBR)
