Nitto Super Coupler Mating Size (04416) 01SN AL NBR 1 piece

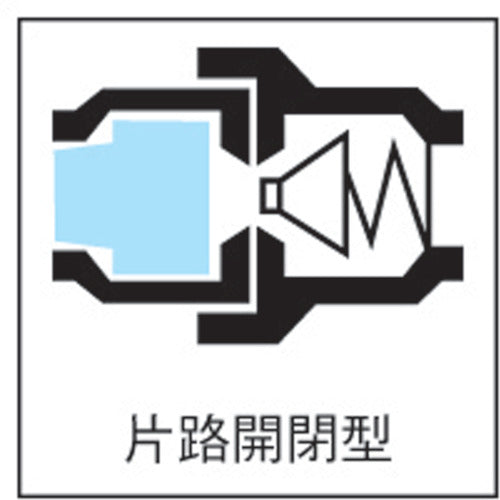

Catalog number: 01SN AL NBR Features: ●Small and lightweight type. ●One-touch connection by simply pushing. ●Boasts one-handed operability. ●Lightweight design suitable for hand tool connection. To reduce weight, some of the main body materials are made of aluminum alloy. ●Plug and socket connections are one-touch connection by simply pushing. ●Various mounting shapes are standardized to accommodate a wide range of pneumatic applications. ●Also available with "tube fitter". Specifications: ●Pressure resistance (MPa): 1.5 ●Mating hose size (mm): 5.0 x 8 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -20 to 80 ●Mating hose size inner diameter (mm): 5.0 ●Mating hose size outer diameter (mm): 8 ●Compatible fittings: Nitto Kohki Super Coupler Type ●One-way opening and closing type ●Valve structure: One-way opening and closing type ●Lightweight design makes it the best match for hand tools. ●One-touch connection provides excellent operability. Material/Finish: Body: Steel (chrome plated) + Aluminum; Sealing rubber: Nitrile rubber (NBR)
