日東工器（株）

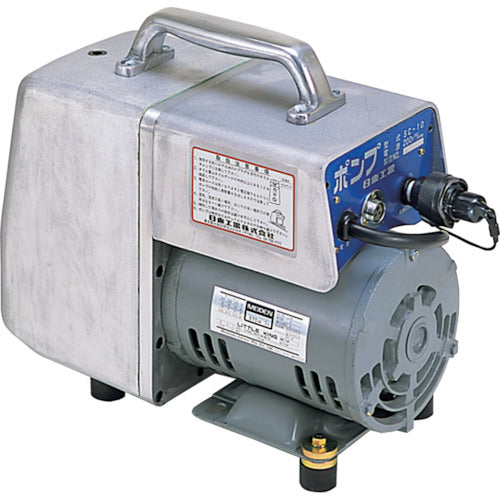

Nitto Selfer hydraulic pump SC-10 1 unit
Nitto Selfer hydraulic pump SC-10 1 unit
Regular price
¥342,408
Regular price
Sale price
¥342,408
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: SC-10 Features: ●Compared to the double-acting type, it is smaller and lighter, and can be used with one hydraulic hose. Specifications: ●Power cord length (m): 5 ●Discharge volume (at 68.65 MPa) (L/min) 50Hz: 1 ●Discharge volume (at 68.65 MPa) (L/min) 60Hz: 1.2 ●Motor (kW): 0.75 2P ●Power source (50/60Hz) (V): AC200 three-phase ●Compatible models: HA05-1018, HA06-1322, HA07-1624, HA11-1624 (single-acting type) ●Power cord length: 5m ●Tank oil volume: 4L ●Maximum operating pressure: 68.65MPa ●Discharge port diameter: R3/8 (PT3/8 inch) Set contents/accessories: ●Hexagonal wrench 8mm: 1 piece ●Oil cap: 1 piece
