Nitto Tube Fitting Macro Coupler Stainless Steel Female Thread Installation (28378) MC-05SM SUS NBR 1 pc

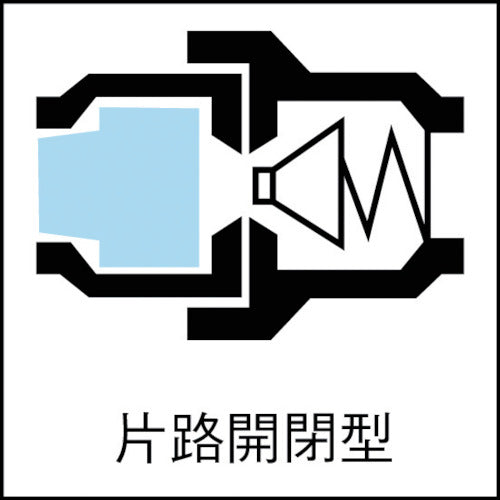

Catalog number: MC-05SM SUS NBR Features: ● A small type with a sleeve outer diameter of 9.5 mm and a valve on the socket, it can be connected by simply pushing it in. Specifications: ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -20 to 80 ● Fluid used: Air ● Pressure resistance (MPa): 1.5 ● Connection size: M5 x 0.8 ● One-way opening and closing type Material/Finish: ● Body: Stainless steel (SUS304) ● Sealing rubber: Nitrile rubber (NBR)
