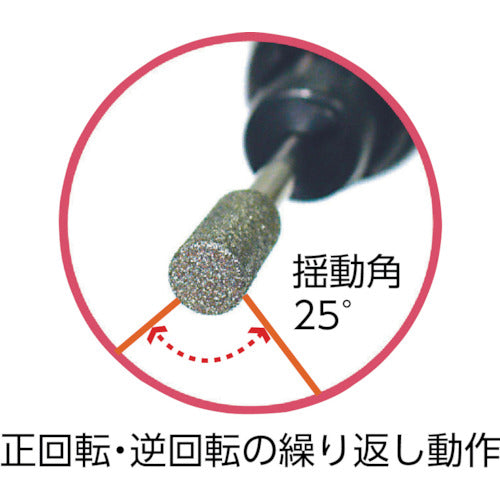

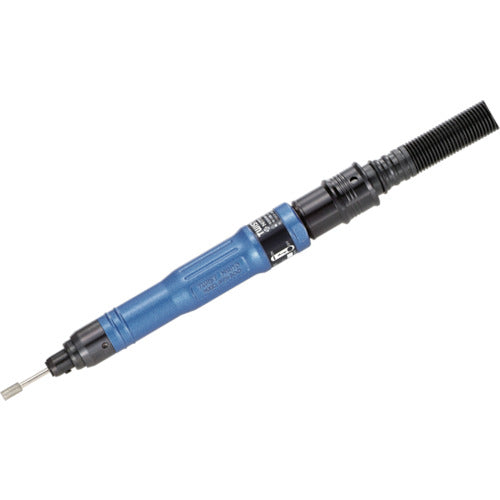

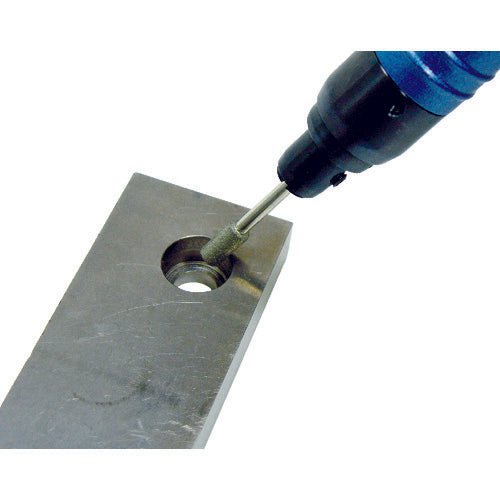

Catalogue number: ATH-300 Features: ● Capable of fine machining, it is ideal for finishing precision molds. ● Unique oscillating motion prevents the tip tool from being bounced off the workpiece. Applications: ● Grinding and polishing work such as deburring metal and chamfering in tight spaces. Specifications: ● Chuck inner diameter (mm): 3 ● Air consumption (m3/min): 0.045 ● Hose attachment port: High Coupler Ace 65PN-PLA ● Exhaust: Rear ● Total length (mm): 190 ● No-load oscillation speed (min-1): 7200 ● Air pressure used: 0.6MPa ● No-load oscillation angle: 25° ● Applicable shaft diameter: 3mm ● Exhaust direction: Rear Set contents/accessories: ● Diamond bar (cylinder): 1 piece ● Diamond bar (cone): 1 piece
