Nitto Nut Coupler 200 Steel (71735) 200-85SN STEEL NBR 1 piece

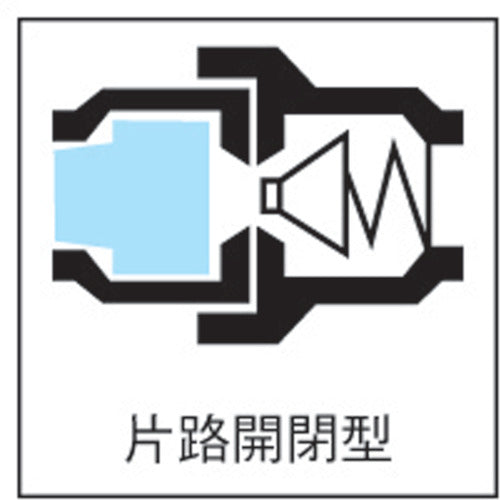

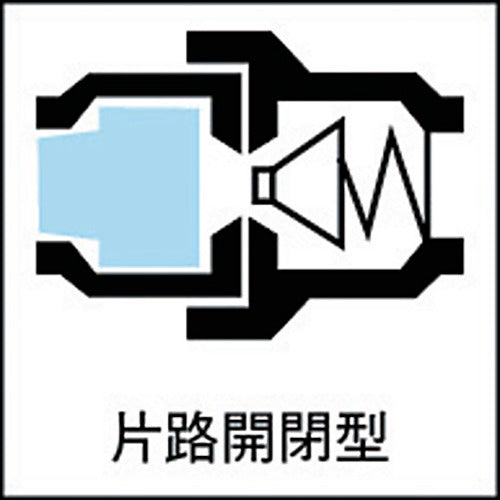

Catalog number: 200-85SN STEEL NBR Features: ●Easy and secure attachment of urethane hoses. Simply insert into nipple and tighten nut to attach to hose. ●Series includes "Hi Coupler" type and Hi Coupler 200 type. Also available with spring nut to prevent hose bending. ●Simply insert into nipple and tighten nut to attach to hose. ●Since the outer circumference of the hose is tightened, the hose is less likely to come loose or fluid to leak out. ●Rotary nut coupler with ball bearing swivel mechanism prevents hose twisting and reduces strain on hands. Specifications: ● Pressure resistance (MPa): 2.0 ● Mating hose size (mm): 8.5 x 12.5 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Operating temperature range (℃): -20 to 60 ● Mating hose size inner diameter (mm): 8.5 ● Mating hose size outer diameter (mm): 12.5 ● Compatible coupler: Nitto Kohki High Coupler Series ● One-way opening and closing type ● Valve structure: One-way opening and closing type ● Hose can be attached without the need for a hose band. ● Comes with a spring nut, eliminating the worry of hose breakage. ● Blade hose attachment is also available. Material/Finish: ● Body: Steel (chrome plated) ● Sealing rubber: Nitrile rubber (NBR)
