Nitto Nut Coupler 200 Steel (73336) 200-60SN STEEL NBR 1 piece

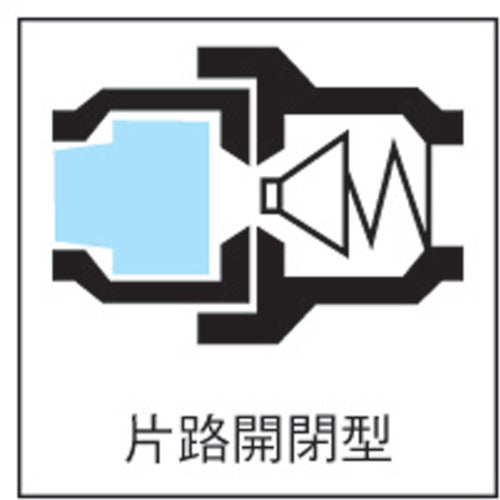

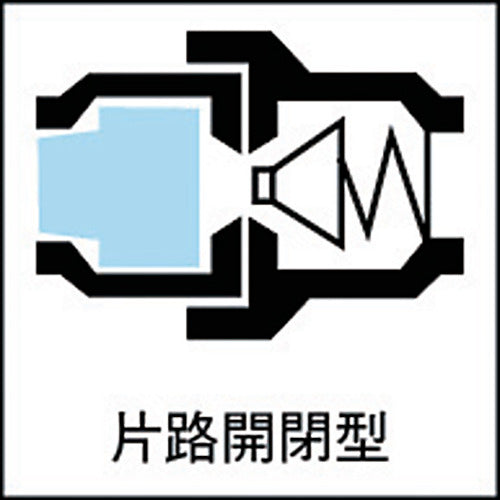

Catalog number: 200-60SN STEEL NBR Features: ● Easily and securely attaches urethane hoses. To attach to a hose, simply insert it into the nipple and tighten the nut. ● Series of "Hi Coupler" type and Hi Coupler 200 type. Also available with spring nuts to prevent hose bending. ● To attach to a hose, simply insert it into the nipple and tighten the nut. ● The outer circumference of the hose is tightened, making it less likely for the hose to come loose or for fluid to leak out. ● A "Rotary Nut Coupler" with a ball bearing swivel mechanism is also available, which prevents the hose from twisting and reduces the strain on the hands. Specifications: ● Pressure resistance (MPa): 2.0 ● Mating hose size (mm): 6.0 x 9.0 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Operating temperature range (℃): -20 to 60 ● Mating hose size inner diameter (mm): 6.0 ● Mating hose size outer diameter (mm): 9.0 ● Compatible coupler: Nitto Kohki High Coupler Series ● One-way opening and closing type ● Valve structure: One-way opening and closing type ● Hose can be attached without the need for a hose band. ● Comes with a spring nut, eliminating the worry of hose breakage. ● Blade hose attachment is also available. Material/Finish: ● Body: Steel (chrome plated) ● Sealing rubber: Nitrile rubber (NBR)
