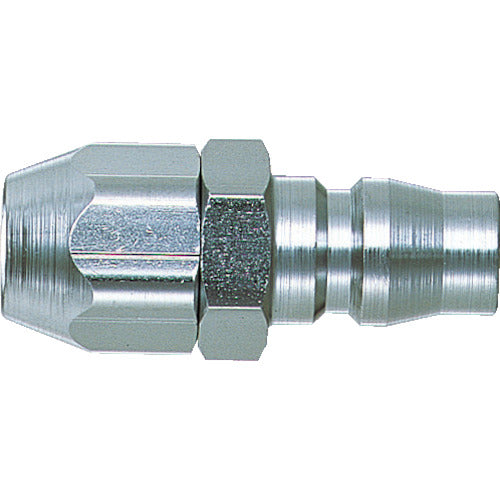

Nitto Nut Coupler Steel Mating Hose Size (mm) 5.0 x 8.0 (04106) 50PN STEEL 1 piece

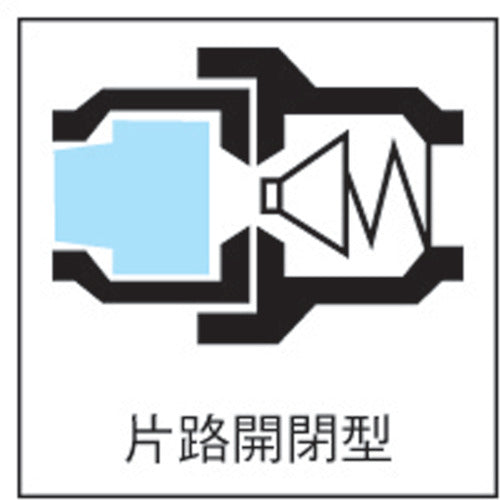

Catalog number: 50PN STEEL Features: ●Easy and secure attachment of urethane hose. Simply insert the nipple and tighten the nut to attach to the hose. ●This type is highly versatile, from air piping in factories to connecting hoses to air tools. ●Series includes the "Hi Coupler" type and the Hi Coupler 200 type. A spring nut type is also available to prevent hose bending. ●To attach to the hose, simply insert the nipple and tighten the nut. ●The outer periphery of the hose is tightened, making it less likely for the hose to come loose or for fluid to leak out. ●The "Rotary Nut Coupler" is also available, which uses a ball bearing swivel mechanism to prevent hose twisting and reduce strain on the hands. Specifications: ● Pressure resistance (MPa): 2.0 ● Mating hose size (mm): 5.0 x 8.0 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Operating temperature range (℃): -20 to 60 ● Mating hose size inner diameter (mm): 5.0 ● Mating hose size outer diameter (mm): 8.0 ● Compatible coupler: Nitto Kohki High Coupler Series ● Valve structure: One-way opening and closing type ● Hose can be attached without the need for a hose band. ● Comes with a spring nut, eliminating the worry of hose breakage. ● Blade hose attachment is also available. Material/Finish: ● Body: Steel (chrome plated)
