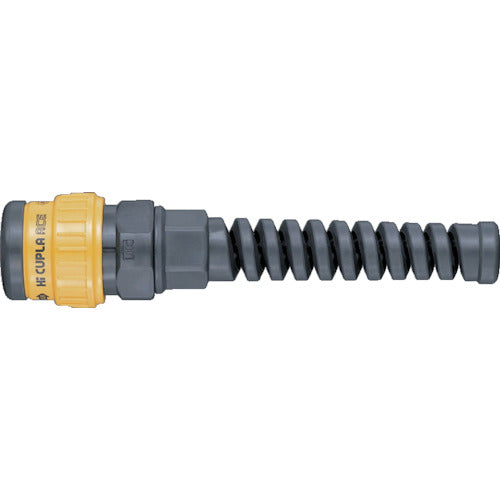

Nitto High Coupler Ace Plastic with Spring Nut (52379) HA-50SNG PBT NBR 1 pc

Catalog number: HA-50SNG PBT NBR Features: ● Pressure resistance equivalent to that of metal products. ● Equipped with an "automatic locking function" to prevent accidental disconnection, and the socket can be connected by simply pushing it in with one touch. ● Lightweight, only 1/4 the weight of metal products, making it easy to handle. ● Suitable for a wide range of fluids, including water as well as air. ● Pressure resistance equivalent to that of metal products. ● Equipped with a "separation prevention mechanism" that locks the sleeve at the same time as connection to prevent accidental separation. ● One-touch connection of plug and socket, simply pushing it in with one touch. ● Lightweight, only 1/4 the weight of "High Coupler", making it easy to handle. ● Suitable for not only air but also water. ● Fluids can flow from both the plug and socket sides. ● A type with a hose is also available. Applications: ● For low pressure. Specifications: ● Pressure resistance (MPa): 2 ● Mating hose size (mm): 5.0 x 8.0 ● Fluid used: air, water ● Maximum operating pressure (MPa): 1.5 ● Compatible coupler: High coupler ● Operating temperature (℃): -20 to 60 ● Valve included ● Spring nut included ● Valve structure: One-way opening and closing type ● Smooth piping with a weight of 1/4 that of metal and one-touch connection. ● Safety is also pursued with a sleeve separation prevention mechanism. Material/Finish: ● Engineering plastic (PBT, POM) ● Seal: Nitrile rubber ● Resin
