Nitto High Coupler Steel (Male Thread Mounting Plug) Mating Side R3/8 Pressure Resistance 2.0Mpa (00286) 30PF STEEL 1 Piece

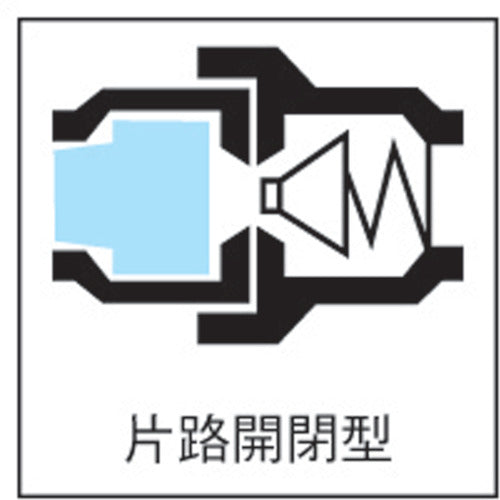

Catalog number: 30PF STEEL Features: ● Standardized body material, size, and mounting shape to accommodate a wide range of applications, from air piping in factories to hose connections for pneumatic tools. ● Hardened steel components for improved strength. ● A versatile coupler for use in factories and hose connections for pneumatic tools. ● Steel is suitable for air, and brass or stainless steel is suitable for water. However, please note that the fluid on the plug side will flow out when disconnected. ● Heat-treated steel components for improved strength. Particularly excellent wear resistance and durability. ● Standardized body material, size, and mounting shape are available in a wide range of materials to accommodate a wide range of pneumatic applications. Applications: ● Air. ● Can be connected to Nitto High Coupler Series. Specifications: ● Pressure resistance (MPa): 2.0 ● Counterpart mounting size: R3/8 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Operating temperature range (℃): -20 to 80 ● Counterpart mounting screw size: R 3/8 ● Compatible coupler: Nitto Kohki High Coupler Series ● Valve structure: One-way opening and closing type ● A wide variety of body materials, sizes, and mounting shapes are available depending on the application, from air piping in factories to connecting air tools. ● Excellent durability and environmental characteristics. Material/Finish: ● Body: Steel (chrome plated)
