Nitto High Coupler Steel Nitrile Rubber NBR (SG) (Socket for Male Thread Installation) Mating Side R3/4 Pressure Resistance 2.0 MPa (00315) 600SF STEEL NBR 1 Piece

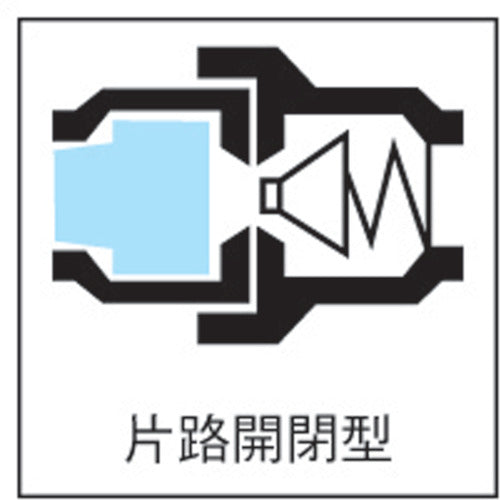

Catalog number: 600SF STEEL NBR Features: ●This is a highly versatile coupler, from air piping in factories to connecting hoses to air tools. ●This is a highly versatile coupler, from air piping in factories to connecting hoses to air tools. ●Steel is suitable for air, and brass or stainless steel is suitable for water. However, please note that the fluid on the plug side will flow out when disconnected. ●The important steel components are heat treated to improve strength. They are particularly resistant to wear and have excellent durability. ●A wide variety of body materials, sizes, and mounting shapes are standardized to accommodate a wide range of pneumatic applications. Applications: ●For air. Specifications: ● Pressure resistance (MPa): 2.0 ● Counterpart mounting size: R3/4 ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Operating temperature range (℃): -20 to 80 ● Compatible coupler: Nitto Kohki High Coupler Series ● Counterpart mounting screw size: R 3/4 ● One-way opening and closing type ● Valve structure: One-way opening and closing type ● A wide variety of body materials, sizes, and mounting shapes are available depending on the application, from air piping in factories to air tool connections. ● Excellent durability and environmental characteristics. Material/Finish: ● Body: Steel (chrome plated) ● Sealing rubber: Nitrile rubber (NBR)
