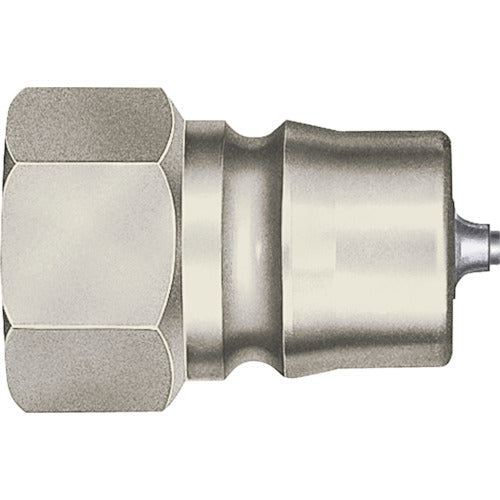

Nitto Hyper HSP Coupler Plug, Mating Mounting Size R3/8 (17898) 3HP-PV STEEL NBR 1 pc

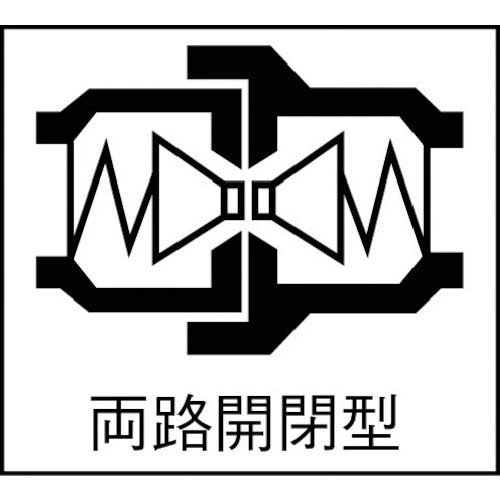

Catalog number: 3HP-PV STEEL NBR Features: ● The purge function eliminates the need for troublesome residual pressure processing during connection work. ● Realizes the efficiency of frequent hydraulic piping connection work. ● Smooth connection is possible even when there is residual pressure when connecting hydraulic piping. ● The purge function eliminates the need for troublesome residual pressure processing during connection. ● Both the plug and socket have built-in automatic opening and closing valves to prevent fluid from leaking when disconnected. ● Can be connected to the current "HSP coupler". Specifications: ● Pressure resistance (MPa): 31.0 ● Fluid used: Hydraulic oil ● Operating temperature range (℃): -20 to 80 ● Maximum operating pressure (MPa): 20.6 ● Counterpart mounting size: R3/8 ● Counterpart mounting screw size: R 3/8 ● Two-way opening and closing type ● Valve structure: Two-way opening and closing type ● The purge function eliminates the need for troublesome residual pressure processing during connection work. ● Realizes the efficiency of frequent hydraulic piping connection work. ●0 Material/Finish: ●Body: Special steel (nickel plated), Seal rubber: Nitrile rubber (NBR)
