Nitto Hyper HSP Coupler 6HSPV (17901) 6HS-PV STEEL NBR 1 piece

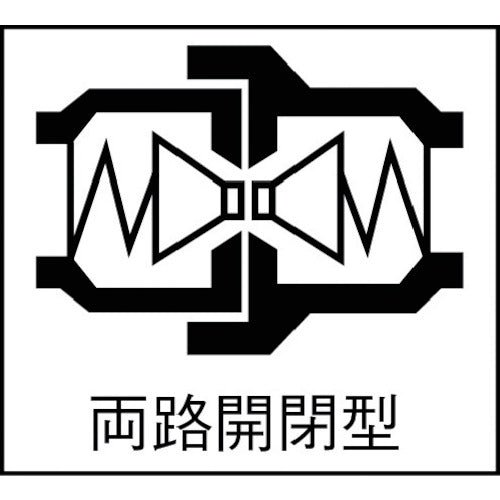

Catalog number: 6HS-PV STEEL NBR Features: ● The purge function eliminates the need for troublesome residual pressure processing during connection work. ● Realizes the efficiency of frequent hydraulic piping connection work. ● Even if there is residual pressure during hydraulic piping connection work, smooth connection is possible. ● The purge function eliminates the need for troublesome residual pressure processing during connection. ● Both the plug and socket have built-in automatic opening and closing valves to prevent fluid from leaking when disconnected. ● Can be connected to the current "HSP coupler". Specifications: ● Pressure resistance (MPa): 31.0 ● Counterpart mounting size: R3/4 ● Fluid used: Hydraulic oil ● Maximum operating pressure (MPa): 20.6 ● Operating temperature range (℃): -20 to 80 ● Counterpart mounting screw size: R 3/4 ● Two-way opening and closing type ● Valve structure: Two-way opening and closing type ● The purge function eliminates the need for troublesome residual pressure processing during connection work. ● Realizes the efficiency of frequent hydraulic piping connection work. Material/Finish: ● Body: Special steel (nickel plated), Seal rubber: Nitrile rubber (NBR)
