Nitto Flat Face Coupler FF Type, Mating Mounting Size R3/8 (20904) FF-3P STEEL NBR 1 pc

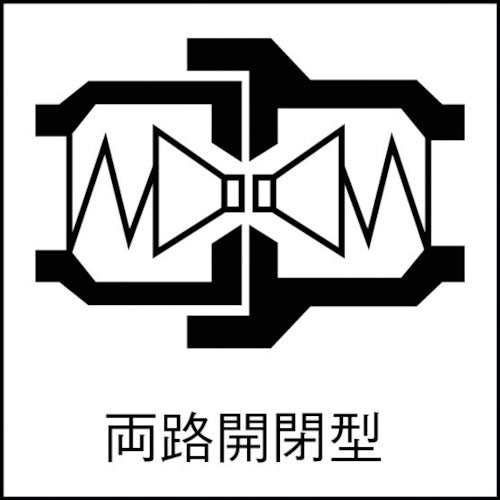

Catalog number: FF-3P STEEL NBR Features: ●Achieves approximately 1.5 to 2 times the flow rate compared to hydraulic couplers such as the 350 coupler and flat face coupler F35 type. ●Achieves 1.5 to 2 times the flow rate compared to the 350 coupler and flat face coupler F35 type. *The rate of increase in flow rate varies depending on the size. ●Uses a "drift reduction valve structure" that minimizes "air mixing" with almost no "drift". ●Suitable for hydraulic circuits with high pressure and pressure fluctuations such as die casting machines. ●The plug and socket can be connected with one touch by simply pushing them in. ●A separation prevention mechanism that prevents unexpected separation due to vibration or impact during connection is also standard equipment, taking into consideration workability and safety. Specifications: ● Pressure resistance (MPa): 52.5 ● Fluid used: Hydraulic oil ● Operating temperature range (℃): -20 to 80 ● Maximum operating pressure (MPa): 35.0 ● Counterpart mounting size: R3/8 ● Counterpart mounting screw size: R 3/8 ● Two-way opening and closing type ● Valve structure: Two-way opening and closing type (reduced dripping type) ● Flow rate is increased up to 2 times. ● Achieves large flow rate with a reduced dripping valve. Material/Finish: ● Body: Special steel (electroless nickel phosphorus plating) ● Sealing rubber: Nitrile rubber (NBR)
