Nitto Micro Coupler Brass MC03SH (02227) MC-03SH BRASS NBR 1 piece

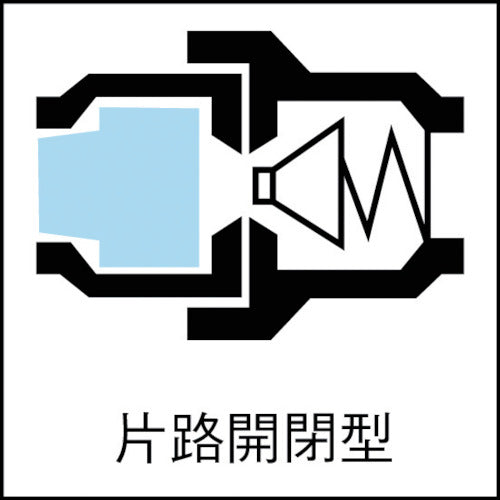

Catalog number: MC-03SH BRASS NBR Features: ● A small type with a sleeve outer diameter of 9.5 mm and a valve on the socket, it can be connected by simply pushing it in. Specifications: ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -20 to 80 ● Fluid used: air, water ● Pressure resistance (MPa): 1.5 ● Compatible tube inner diameter (mm): 3 ● Compatible tube inner diameter D (mm): 3 ● One-way opening and closing type Material/Finish: ● Body: Brass (plated) ● Sealing rubber: Nitrile rubber (NBR)
