Nitto Micro Coupler Brass MC04PH (01325) MC-04PH BRASS 1 piece

Nitto Micro Coupler Brass MC04PH (01325) MC-04PH BRASS 1 piece

JAN：4992338013257 　
Fluid Couplings and Tubes Nitto Kohki Coupler N Pneumatic Equipment Tube Fittings Tube Fittings (Other)
¥251
¥251
Sale Sold out
Shipping calculated at checkout.

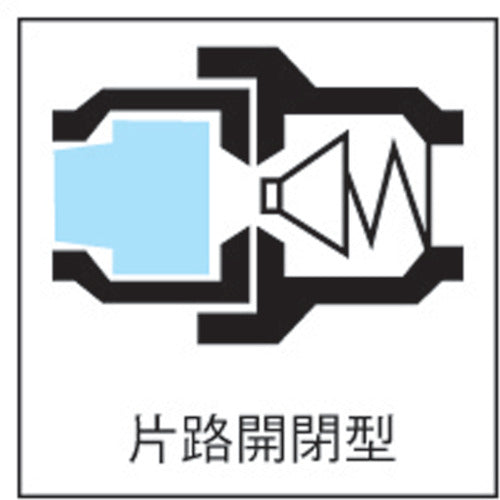

Catalog number: MC-04PH BRASS Uses: ● For connecting pneumatic control devices such as air cylinders and solenoid valves. Specifications: ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): -20 to 80 ● Fluid used: air, water ● Pressure resistance (MPa): 1.5 ● Compatible tube inner diameter (mm): 4 ● Compatible tube inner diameter D (mm): 4 ● One-way opening and closing type ● Compatible fittings: Micro coupler Material/Finish: ● Body: Brass (plated) ● Sealing rubber: Nitrile rubber (NBR)
