Nitto Lever Lock Coupler (for male thread installation) Mating installation size: R1 inch (79776) LA-8TPF-AL 1 piece

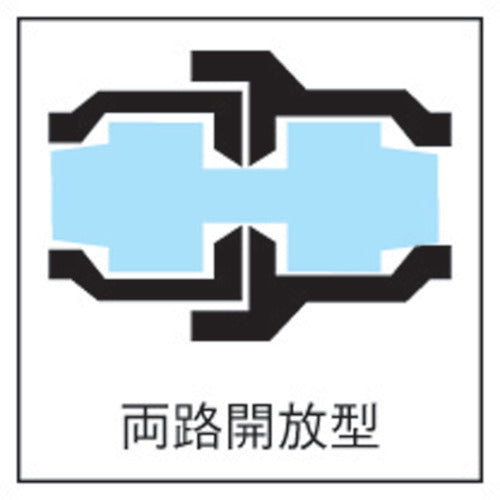

Catalog number: LA-8TPF-AL Features: ● Connect (lock) and disconnect fluid piping with a light lever operation, and adapt to various fluid transport needs such as liquid, gas, and powder. ● Connection dimensions comply with US military standard AA-59326. ● Can be widely used to transport liquid, gas, and powder. ● End face seal structure with few irregularities on the inner surface, realizing smooth fluid transport. ● "Special lip packing" is used (excluding nominal size 3/4 and 1, silicone rubber, and FEP coated rubber) to reduce lever operation load. ● Can be connected to products whose connection dimensions comply with US military standard A-A-59326 (MIL-C-27487). ● Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications. ● Stopper function further improves safety. (Made to order / Metal only) Specifications: ● Pressure resistance (MPa): 2.7 ● Fluids used: Water, hydraulic oil, air, powder ● Maximum operating pressure (MPa): 1.8 ● Counterpart mounting size (inch): R1 ● Counterpart mounting screw size: R 1 ● Operating temperature range: -20 to 80°C ● Maximum operating pressure: 1.8MPa ● Two-way open type ● Compatible fittings: Nitto Kohki lever lock coupler type ● Transports liquids, gases, and powders with a light lever operation. ● Wide variety of body materials, sizes, and mounting shapes. ● Valve structure: Two-way open type Material/Finish: ● Body: Aluminum alloy Note: ● Please note that some appearances, dimensions, and mass may differ due to product improvements.
