Nitto Lever Lock Coupler (for male thread installation) Mating installation size: R1 1/4 inch (79779) LD-10TSF AL NBR 1 piece

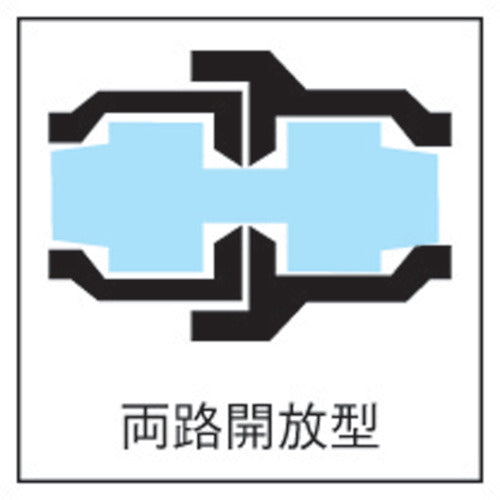

Catalog number: LD-10TSF AL NBR Features: ● A light lever operation connects (locks) and disconnects fluid piping, and is suitable for various fluid transport needs such as liquids, gases, and powders. ● Connection dimensions comply with US military standard AA-59326. ● Can be used widely for transporting liquids, gases, and powders. ● End face seal structure with few irregularities on the inner surface, realizing smooth fluid transport. ● "Special lip packing" is used (excluding nominal size 3/4 and 1, silicone rubber, and FEP coated rubber) to reduce lever operation load. ● Can be connected to products whose connection dimensions comply with US military standard A-A-59326 (MIL-C-27487). ● Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications. ● Stopper function further increases safety. (Made to order / Metal only) Specifications: ● Pressure resistance (MPa): 2.7 ● Counterpart mounting size: R1 1/4 ● Fluid used: Water, hydraulic oil, air, powder ● Maximum operating pressure (MPa): 1.8 ● Operating temperature range (℃): -20 to 80 ● Counterpart mounting screw size: R 1 1/4 ● Two-way open type ● Compatible fittings: Nitto Kohki lever lock coupler type ● Transports liquids, gases, and powders with a light lever operation. ● Wide variety of body materials, sizes, and mounting shapes. ● Valve structure: Two-way open type Material/Finish: ● Body: Aluminum alloy ● Sealing rubber: Nitrile rubber (NBR) Note: ● Please note that some appearances, dimensions, and mass may differ due to product improvements.
