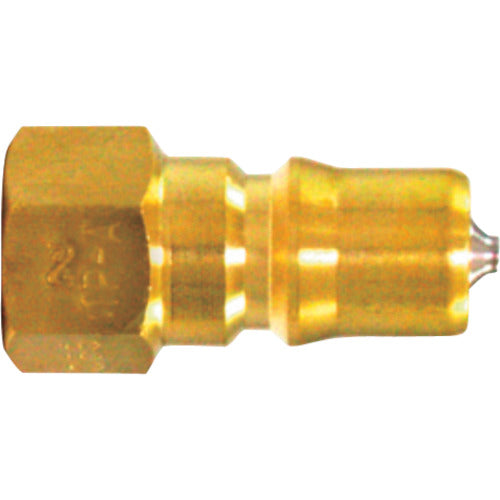

Nitto [Sold out and discontinued] SP coupler Type A Brass Fluorine rubber FKM X-100 BSBM1PAX100 1 piece

Catalog number: BSBM1PAX100 Features: ●The smooth shape of the plug tip makes it easier to connect to the socket. ●The valve's automatic center return function improves sealing performance after separation. Applications: ●For piping connections for water, chemicals, air, gas, and hydraulic oil. Specifications: ●Pressure resistance (MPa): 7.5 ●Fluids used: water, hydraulic oil, chemicals, air, gas ●Maximum operating pressure (MPa): 5.0 ●Mating side mounting size: R1/8 ●Operating temperature range: -20 to 180°C ●Two-way opening and closing type Materials/Finish: ●Body: Brass ●Seal rubber: Fluorine rubber (FKM)
