Nitto Mold Coupler Nitrile Rubber NBR (SG) K02SH (80405) K-02SH BRASS NBR 1 piece

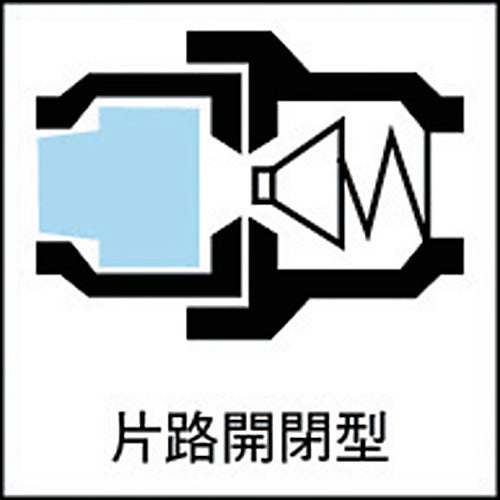

Catalog number: K-02SH BRASS NBR Features: ●Space-saving design that can be used for molds with narrow water inlet spacing. ●Long sleeve socket. ●Can be connected and disconnected while the plug is embedded in the mold. ●Hose for mold cooling water can be connected and disconnected quickly. ●Various sizes and mounting shapes are standardized to accommodate a wide range of mold applications. ●Can be connected to "Super Coupler". ●Plug and socket can be connected with one touch by simply pushing them in. (Socket has built-in automatic opening and closing valve) *Valveless version also available. Please specify in that case. Specifications: ●Pressure resistance (MPa): 1.5 ●Matching hose size (inch): 1/4 ●Fluid used: Water, hot oil ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): -20 to 80 ●Excellent corrosion resistance, wide variety. ●Valve structure: One-way opening and closing type ●Reduces mold replacement time. Material/Finish: ●Body: Brass ●Seal rubber: Nitrile rubber (NBR)
