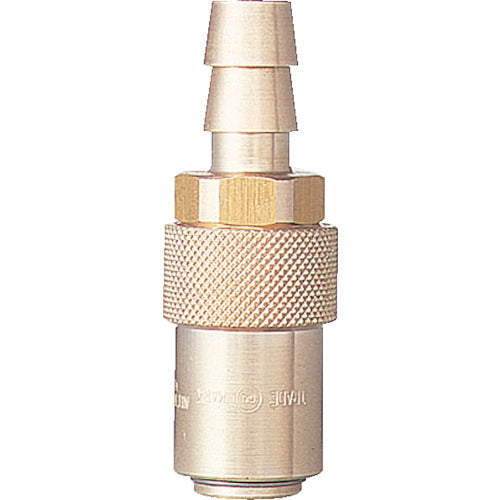

Nitto Mold Coupler (for hose attachment) K03TSH Mating hose size (inch) 3/8 (04472) K-03TSH BRASS NBR 1 pc

Catalog number: K-03TSH BRASS NBR Features: ● Allows for quick connection and disconnection of mold cooling water hoses. ● Small outer diameter (18.5 mm), ideal for those with narrow water inlet spacing. ● Long sleeve system is used to easily attach and detach the socket while the plug is embedded in the mold. ● Space-saving design that can be used for molds with narrow water inlet spacing. ● Socket is long sleeve system. The plug can be connected and disconnected while embedded in the mold. ● Allows for quick connection and disconnection of mold cooling water hoses. ● Various sizes and mounting shapes are standardized to accommodate a wide range of mold applications. ● Can be connected to "Super Coupler". ● Plug and socket can be connected with one touch by simply pushing them in. (Socket has built-in automatic opening and closing valve) * Valve-less version also available. Please specify. ●0 Specifications: ●Pressure resistance (MPa): 1.5 ●Usable fluid: water, warm oil ●Usable temperature range (℃): -20 to 80 ●Maximum operating pressure (MPa): 1.0 ●Mating hose size (inch): 3/8 ●Compatible coupler: Nitto Kohki mold coupler K type ●Mating hose size: 45359 ●Reduces mold replacement time. ●Valve structure: One-way opening and closing type ●Excellent corrosion resistance and a wide variety of options. Material/Finish: ●Body: Brass ●Seal rubber: Nitrile rubber (NBR)
