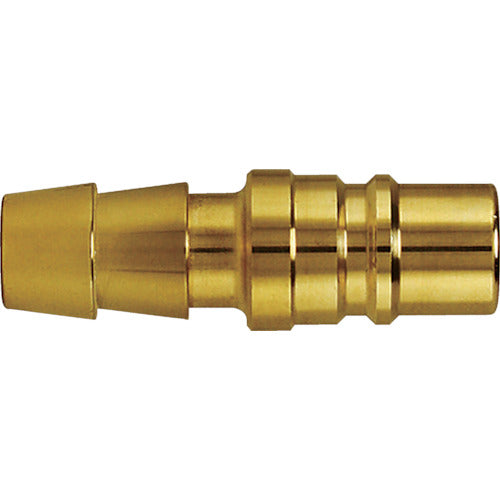

Nitto Mold Coupler Large Flow Type (42185) K3-03PH BRASS 1 pc

Catalog number: K3-03PH BRASS Features: ●The flow rate is increased by approximately two times, which greatly contributes to production efficiency. ●The "Mold Coupler" series, which contributes to shortening and improving mold replacement time for mold cooling and hot oil, has been expanded to include the high-flow type K3 series and K4 series. ●The flow rate is approximately twice as high as that of conventional products, and by improving the mold cooling piping, it greatly contributes to shortening molding time. ●Space-saving design that can be used for molds with narrow water inlet spacing. ●The socket is a long sleeve type. It can be connected and disconnected while the plug is embedded in the mold. ●The mold cooling water hose can be connected and disconnected quickly. Specifications: ●Pressure resistance (MPa): 1.5 ●Mating hose size (inch): 3/8 ●Usable fluid: water, hot oil ●Maximum operating pressure (MPa): 1.0 ●Usable temperature range (℃): -20 to 80 ●Valve structure: One-way opening and closing type ●The flow rate is increased by approximately two times. ●It also greatly contributes to production efficiency. Material/Finish: ●Body: Brass
