Nitto Metal Coupling Super Coupler Mating Side Mounting Rc1/4 (04403) 02PM STEEL 1 Piece

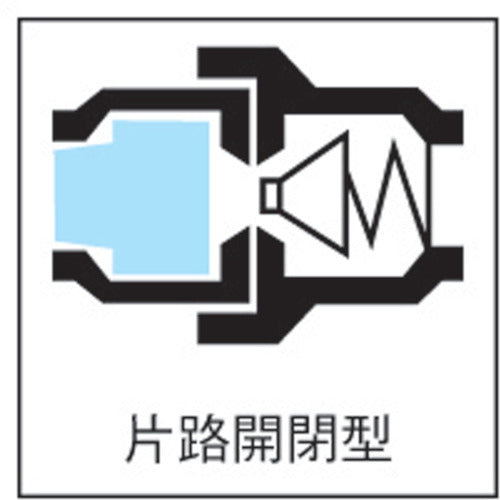

Catalog number: 02PM STEEL Features: ●Small and lightweight type. ●One-touch connection by simply pushing. ●Boasts one-handed operability. ●Lightweight design suitable for hand tool hand connection. To reduce weight, some of the body materials are made of aluminum alloy. ●Plug and socket connections are one-touch connection by simply pushing. ●Various mounting shapes are standardized to accommodate a wide range of pneumatic applications. ●Also available with "tube fitter". Specifications: ●Pressure resistance (MPa): 1.5 ●Fluid used: Air ●Operating temperature range (℃): -20 to 80 ●Maximum operating pressure (MPa): 1.0 ●Mating side mounting size: Rc1/4 ●Product name: Metal coupling Super coupler Mating side mounting Rc1/4 (04403) ●Mating side mounting screw size: Rc 1/4 ●Compatible fitting: Nitto Kohki Super coupler type ●Valve structure: One-way opening and closing type ●Lightweight design makes it the best match for hand tools. ●One-touch connection provides excellent operability. Material/Finish: Body: Steel (chrome plated)
