Nitto 210 coupler Nitrile rubber NBR (SG) (03326) 210-6S STEEL NBR 1 piece

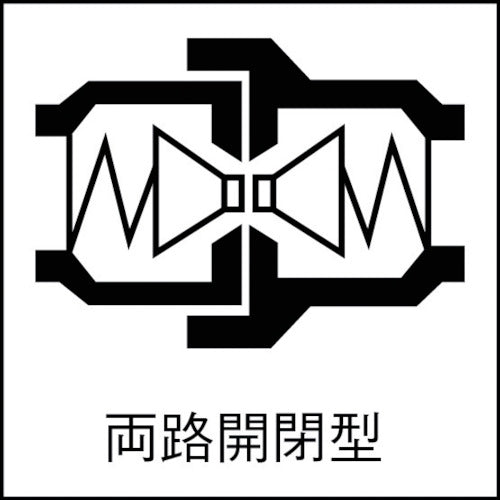

Catalog number: 210-6S STEEL NBR Features: ● Popular hydraulic coupler with a maximum operating pressure of 20.6 MPa. ● Low pressure loss, suitable for hydraulic equipment. ● Hydraulic coupler with a maximum operating pressure of 20.6 MPa (210 kgf/cm2). ● Designed to keep pressure loss low, suitable for hydraulic applications that require flow rate. ● Both socket and plug have built-in automatic opening and closing valves to prevent fluid leakage during separation. Specifications: ● Pressure resistance (MPa): 31.0 ● Counterpart mounting size: R3/4 ● Fluid used: Hydraulic oil ● Maximum operating pressure (MPa): 20.6 ● Operating temperature range (℃): -20 to 80 ● Counterpart mounting screw size: R 3/4 ● Two-way opening and closing type ● Valve structure: Two-way opening and closing type ● Hydraulic coupler with a maximum operating pressure of 20.6 MPa. ● Low pressure loss, suitable for hydraulic equipment. Material/Finish: ● Body: Special steel (nickel plated), Seal rubber: Nitrile rubber (NBR)
