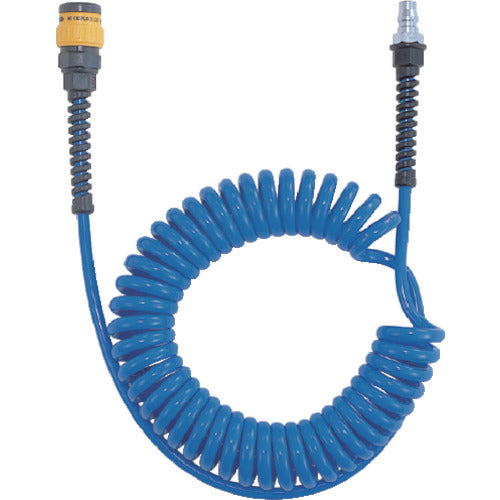

Nitto NK Coupler Coil Hose (52495) NKC-603B 1 piece

Catalog number: NKC-603B Features: ●The high coupler ace (socket) comes standard with a spring nut to prevent the hose from bending, and a urethane hose with excellent flexibility, durability, and abrasion resistance. Specifications: ●Coil diameter (mm): 52 ●Color: Blue ●Hose inner diameter x outer diameter (mm): 6.5 x 10 ●Usage range (m): 2.0 ●Total length (mm): 917 ●Coil length (mm): 198 ●Outer diameter (mm): 10 ●Inner diameter (mm): 6.5 ●Hose size (mm): 6.5 x 10 ●Usage fluid: Air ●Fluid temperature: -5 to 60°C ●Maximum operating pressure: 0.7MPa ●Connection joint: HA-65SNG, 65PNG Material/Finish: ●Polyurethane
