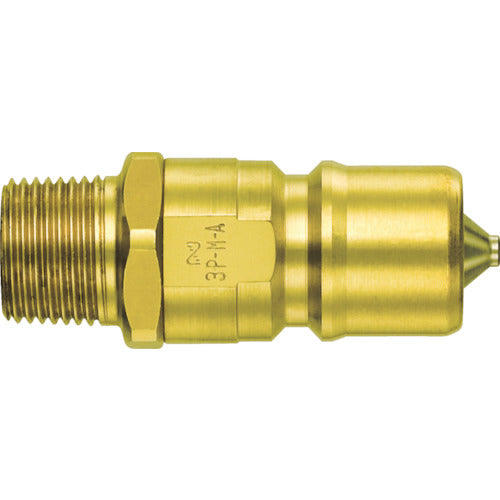

Nitto SP Coupler Type A Brass Fluorine Rubber FKM X-100 (39091) 3P-MA BRASS FKM 1 piece

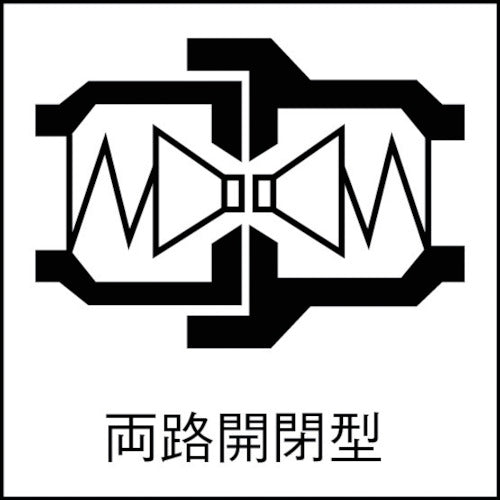

Catalog number: 3P-MA BRASS FKM Features: ●This is a high flow type SP coupler. ●Both the socket and plug are equipped with automatic opening and closing valves to prevent fluid from leaking out when separated. ●Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. ●Nickel plating is used for the surface treatment of the steel body. We are striving to reduce environmental impact. Specifications: ●Pressure resistance (MPa): 7.5 ●Usable fluids: water, chemicals, air, gas, hydraulic oil ●Usable temperature range (℃): -20 to 180 ●Maximum operating pressure (MPa): 5.0 ●Mating mounting size: Rc3/8 ●Mating mounting thread size: Rc 3/8 ●Two-way opening and closing type ●Valve structure: Two-way opening and closing type ●For medium pressure applications with automatic opening and closing valves built into the socket and plug. ●A wide range of body materials, mounting sizes, and seal materials make it extremely versatile. ●Male thread type is also available. Material/Finish: ●Body: Brass ●Seal rubber: Fluorine rubber (FKM)
