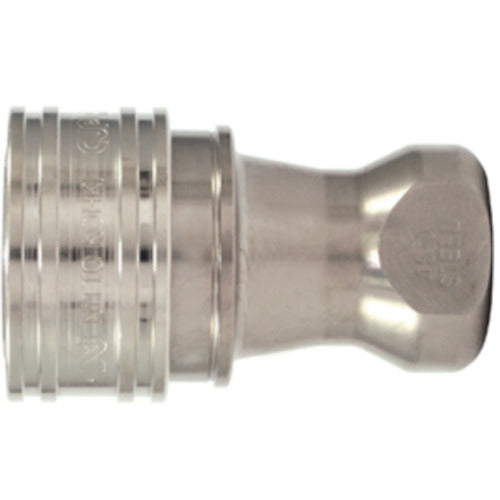

Nitto SP Coupler Type A Steel Fluorine Rubber FKM X-100 (08291) 4S-A STEEL FKM 1 piece

Catalog number: 4S-A STEEL FKM Features: ●The smooth shape of the plug tip makes it easier and smoother to connect to the socket. ●The valve's automatic center return function improves sealing performance after separation. ●Both the socket and plug are equipped with automatic opening and closing valves to prevent fluid from leaking out when separated. ●Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. ●Nickel plating is used for the surface treatment of the steel body. ●We are working to reduce environmental impact. Applications: ●Pipe connection for air, gas, and oil. Specifications: ●Pressure resistance (MPa): 6.5 ●Matching side mounting size: R1/2 ●Usable fluid: air, gas, hydraulic oil ●Maximum operating pressure (MPa): 4.5 ●Using temperature range (℃): -20 to 180 ●Matching side mounting screw size: R 1/2 ●Two-way opening and closing type ●Valve structure: Two-way opening and closing type ●For medium pressure applications with automatic opening and closing valves built into the socket and plug. ●A wide range of body materials, mounting sizes, and seal materials make it extremely versatile. ●Male thread type also available. Material/Finish: ●Body: Steel (nickel plated) ●Seal rubber: Fluorine rubber (FKM)
