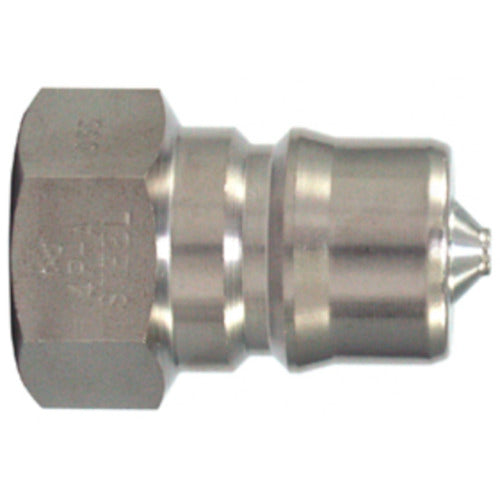

Nitto SP Coupler Type A Steel Fluorine Rubber FKM X-100 (08292) 4P-A STEEL FKM 1 piece

Catalog number: 4P-A STEEL FKM Features: ●The smooth shape of the plug tip makes the connection to the socket smoother and more comfortable. ●The automatic center return function of the valve improves the sealing performance after separation. ●Both the socket and plug are equipped with an automatic opening and closing valve to prevent the fluid from leaking out when separated. ●Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. ●Nickel plating is used for the surface treatment of the steel body. ●We are striving to reduce environmental impact. Applications: ●Pipe connection for air, gas, and oil. Specifications: ●Pressure resistance (MPa): 6.5 ●Matching side mounting size: R1/2 ●Used fluid: water, hydraulic oil, chemicals, air, gas ●Maximum operating pressure (MPa): 4.5 ●Operating temperature range (℃): -20 to 180 ●Matching side mounting screw size: R 1/2 ●Two-way opening and closing type ●Valve structure: Two-way opening and closing type ●For medium pressure applications with automatic opening and closing valve built into the socket and plug. ●Various body materials, mounting sizes, and seal materials make it extremely versatile. ●Male thread type also available. Material/Finish: ●Body: Steel (nickel plated) ●Seal rubber: Fluorine rubber (FKM)
