Nitto SP Coupler Type A Steel Nitrile Rubber NBR (SG) Mating Size R2 (19118) 16P-A STEEL NBR 1 pc

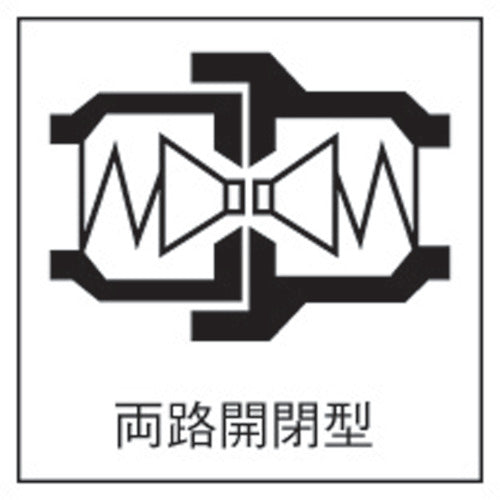

Catalog number: 16P-A STEEL NBR Features: ●The smooth shape of the plug tip makes the connection operation with the socket smoother and more comfortable. ●The valve's automatic center return function improves sealing performance after separation. ●Both the socket and plug are equipped with automatic opening and closing valves to prevent fluid from leaking out when separated. ●Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. ●Nickel plating is used for the surface treatment of the steel body. ●We are striving to reduce environmental impact. Specifications: ●Pressure resistance (MPa): 3.0 ●Matching side mounting size: R2 ●Usable fluid: air, gas, hydraulic oil ●Maximum operating pressure (MPa): 2.0 ●Using temperature range (℃): -20 to 80 ●Total length (mm): 80 ●Applicable coupler: Nitto Kohki SP-A coupler series ●Matching side mounting screw size: R 2 ●Two-way opening and closing type ●Valve structure: Two-way opening and closing type ●For medium pressure applications with automatic opening and closing valves built into the socket and plug. ●A wide range of body materials, mounting sizes, and seal materials make it extremely versatile. ●Male thread type also available. Material/Finish: ●Body: Steel (nickel plated) ●Seal rubber: Nitrile rubber (NBR)
