Nitto TSP coupler, steel (plug for male thread installation), mating side R2 (00827), 16TPF STEEL, 1 piece

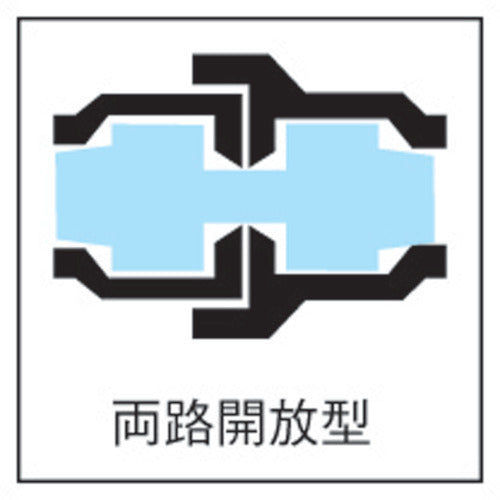

Catalog number: 16TPF STEEL Features: ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. ● Blade hoses can be attached without hose bands. (TPN type/TSN type) Specifications: ● Pressure resistance (MPa): 3.0 ● Counterpart mounting size: R2 ● Fluids used: hydraulic oil, air, gas ● Maximum operating pressure (MPa): 2.0 ● Operating temperature range (℃): -20 to 80 ● Counterpart mounting screw size: R 2 ● Compatible coupler: Nitto Kohki TSP coupler series ● Valve structure: Two-way open type ● Valveless structure is suitable for highly viscous fluids. ● A wide variety of body materials, sizes, and mounting shapes. ● Blade hose mounting is also available. Material/Finish: Body: Steel (nickel plated) Note: For applicable fluids for hose attachment types, please also take into consideration the specifications of the attachment hose.
