Nitto TSP coupler, steel, nitrile rubber SG (NBR) (hose mounting socket), counterpart 1 inch (00846), 8TSH STEEL NBR, 1 piece

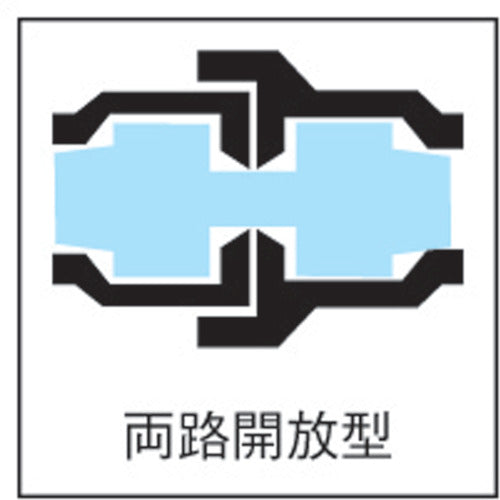

Catalog number: 8TSH STEEL NBR Features: ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. Specifications: ● Pressure resistance (MPa): 6.5 ● Mating hose size (inch): 1 ● Fluid used: hydraulic oil, air, gas ● Maximum operating pressure (MPa): 4.5 ● Operating temperature range (℃): -20 to 80 ● Compatible coupler: Nitto Kohki TSP coupler series ● Mating hose size: 1 ● Two-way open type ● Valve structure: Two-way open type ● Valveless structure is suitable for high viscosity fluids. ● Wide variety of body materials, sizes, and mounting shapes. ● Blade hose mounting is also available. Material/Finish: Body: Steel (nickel plated) Sealing rubber: Nitrile rubber (NBR) Note: For applicable fluids for hose attachment types, also take into consideration the specifications of the attachment hose.
