Nitto TSP coupler, steel (hose mounting plug), mating side 1 inch (00816), 8TPH STEEL, 1 piece

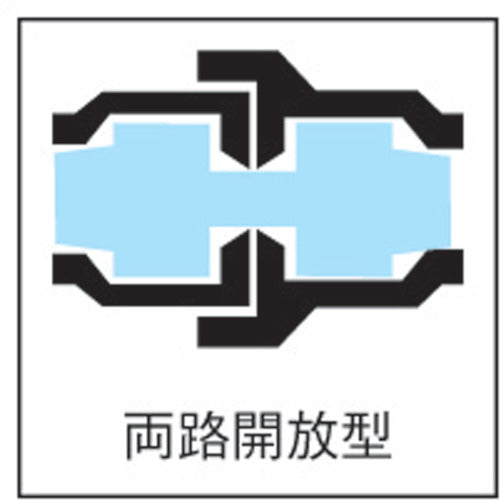

Catalog number: 8TPH STEEL Features: ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. Specifications: ● Pressure resistance (MPa): 6.5 ● Mating hose size (inch): 1 ● Fluid used: hydraulic oil, air, gas ● Maximum operating pressure (MPa): 4.5 ● Operating temperature range (℃): -20 to 80 ● Mating hose size: 1 ● Compatible coupler: Nitto Kohki TSP coupler series ● Valve structure: Two-way open type ● Valveless structure is suitable for high viscosity fluids. ● A wide variety of body materials, sizes, and mounting shapes. ● Blade hose mounting is also available. Material/Finish: ● Body: Steel (nickel plated) Note: ● Regarding the applicable fluid for the hose mounting type, please also consider the specifications of the mounting hose.
