Nitto TSP coupler, steel (hose mounting plug), mating side 1 1/2 inch (00822), 12TPH STEEL, 1 piece

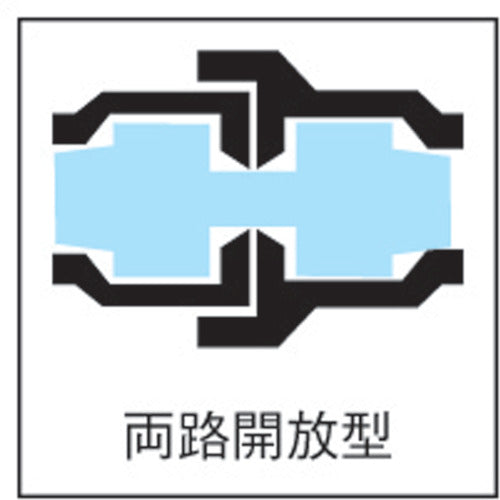

Catalog number: 12TPH STEEL Features: ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Valveless structure significantly reduces pressure loss and provides a large flow rate. ● Suitable for highly viscous fluids (such as grease). ● Various body materials, sizes, and mounting shapes are standardized to accommodate a wide range of applications and situations. Specifications: ● Pressure resistance (MPa): 4.5 ● Mating hose size (inch): 1 1/2 ● Fluids used: hydraulic oil, air, gas ● Maximum operating pressure (MPa): 3.0 ● Operating temperature range (℃): -20 to 80 ● Mating hose size: 1 1/2 ● Compatible coupler: Nitto Kohki TSP coupler series ● Valve structure: Both ways open type ● Valveless structure is suitable for highly viscous fluids. ● A wide variety of body materials, sizes, and mounting shapes. ● Blade hose mounting is also available. Material/Finish: ● Body: Steel (nickel plated) Note: ● Regarding the applicable fluids of the hose mounting type, please also consider the specifications of the mounting hose.
