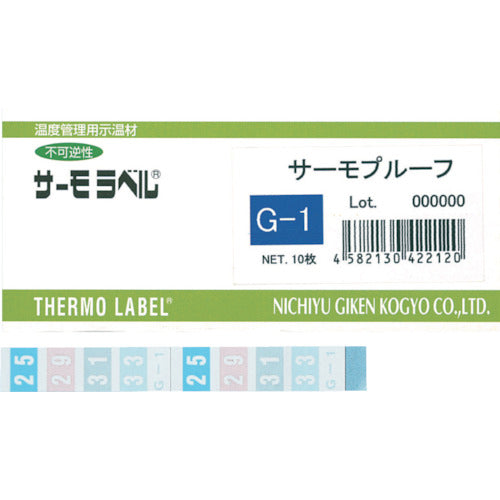

NOF Technology Thermoproof G-1 G-1 1 CS

Catalog number: G-1 Features: ●This is a product with a label made from thermo paint. ●It is an irreversible temperature indicator that will not return to its original color once it has changed color. Applications: ●Temperature control in heat treatment processes. Temperature measurement in laboratory equipment. Specifications: ● Primary color: Light greenish blue/Light pink/Light bluish gray/Light blue-green● Color after discoloration: Reddish gray/Black/Brownish black/Grayish black● Discoloration temperature (℃): 250-290-310-330● Element size (mm): 10×6● Seal size (mm): 10×37● Element size (φmm): ±10℃● Sheet size (mm): 10×37● Temperature range (℃): 250℃ to 330℃● Temperature pitch (℃): 250℃, 290℃, 310℃, 330℃● Measurement accuracy: ±10℃● 4-point display type● For indoor use only● With adhesive Material/Finish: ● Thermochromic pigment● Silicone resin base material● Adhesive● Release film Note: ● Discoloration temperature may vary slightly depending on the heating speed, heating time, pressure, reactive gas, etc. ● At temperatures below 10℃, the flexibility of the label may decrease and the label may crack. ●At temperatures below 15°C, the adhesive strength may decrease and the label may not stick properly. In such cases, adjust the temperature of the label and the area where it will be stuck to around 25°C. ●Please use the label within one year of purchase.
