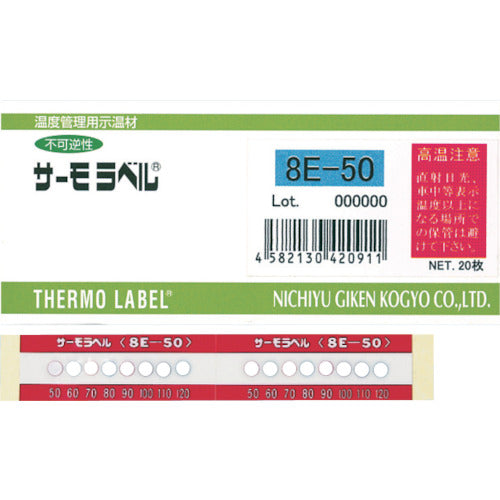

NOF Technology Thermo Label 8-point display Irreversible 50 degrees 8E-50 1 CS

Catalogue number: 8E-50 Features: ●Temperature can be detected by a change in color. ●Irreversible temperature indicator that will not return to its original color once discolored. Applications: ●Heat inspection of substation equipment, machinery, etc. ●For temperature control in heat treatment processes. ●For temperature control in distribution processes. ●For temperature control in power distribution equipment. ●Monitors abnormal heat generation caused by overcurrent or loose crimped parts. Specifications: ● Primary color: White ● Color after discoloration: Red/Green/Red-orange/Blue/Red/Dark red/Blue ● Discoloration temperature (℃): 50-60-70-80-90-100-110-120 ● Element size (mm): 3 ● Seal size (mm): 15×43 ● Element size (φmm): 3 ● Sheet size (mm): 15×43 ● Measurement accuracy: ±2℃ ● 8-point display type ● Can be used indoors and outdoors ● With adhesive ● Irreversible Material/Finish: ● Film ● Thermochromic pigment ● Paper ● Adhesive Caution: ● Avoid using under high pressure, high vacuum, microwave oven, etc. ● Using under conditions where there is the influence of water, oil, solvents, plasticizers, etc. may cause abnormal discoloration. ● Do not cut, bend, or deform the shape of this product. This may reduce the discoloration performance and durability. ● After purchase, use within one year as a guideline.
