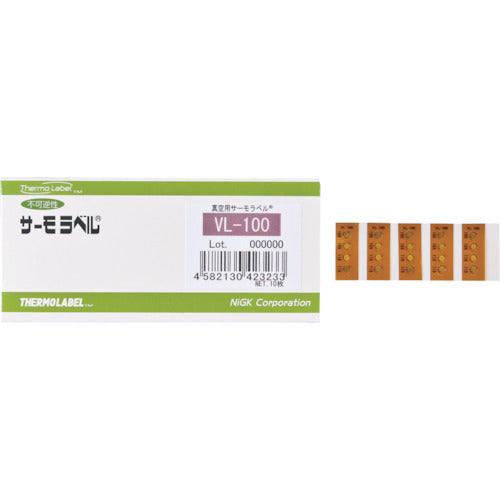

Nitto Denko Vacuum Thermo Label 4-Point Display Irreversible 100 Degrees VL-100 1 CS

Catalog number: VL-100 Features: ● Temperature can be detected from 1 Pa to normal pressure by color change. ● Once discolored, it is an irreversible temperature indicator that does not return to its original color. ● Low outgas is used as a constituent material to suppress outgassing from the label. Applications: ● Temperature control during etching, vacuum deposition, and processing. Specifications: ● Primary color: Light yellow ● Color after discoloration: Black ● Discoloration temperature (℃): 100/105/110/115 ● Element size (mm): 2 ● Seal size (mm): 8 x 20 ● Element size (φmm): 2 ● Sheet size (mm): 8 x 20 ● Measurement method: Irreversible ● Measurement accuracy: ±2℃ ● 4-point display type ● With adhesive Material/Finish: ● Polyimide film ● Temperature indicator element ● Adhesive ● Backing paper Caution: ● Use under conditions affected by water, oil, solvents, plasticizers, etc. may cause abnormal discoloration. ● Do not cut, bend, or deform the shape of this product. This may reduce the discoloration performance and durability. ●Please use this product at temperatures below 230°C. At temperatures above 230°C, more outgassing than expected may occur. ●Please keep the heating time for this product to 1 hour or less. ●Please use this product under pressure conditions of 1 Pa to normal pressure.
