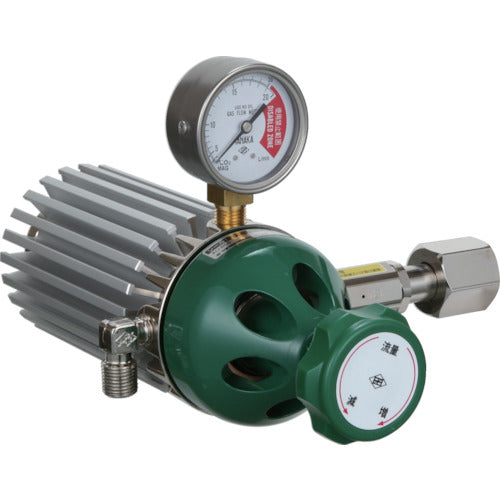

Nippon Sanso TANAKA AU-888 QAN51549 1 unit

Catalog number: QAN51549 Features: ●Two-stage pressure reduction structure and efficient heat exchange method ensure a stable supply of gas. ●Two-stage pressure reduction structure and efficient heat exchange method solve the flow rate instability caused by the drop in gas temperature due to adiabatic expansion, and ensure a stable supply of carbon dioxide and MAG gas. ●Equipped with fins that increase the contact area with the atmosphere to efficiently absorb heat from the atmosphere. ●The main body is made of lightweight aluminum with good heat exchange performance. ●Although it is small, it can be used with large flow rates. ●Bourdon tube type flowmeter. Applications: ●For general electric welding work using carbon dioxide and MAG gas. ●Pressure regulator for carbon dioxide and MAG gas. Specifications: ●Model: 888●Primary side operating pressure (MPa): 2.2 to 12.0 (carbon dioxide), 2.2 to 14.0 (magnesium oxide)●Secondary side operating pressure (MPa): 0.2●Inlet connection: W22-14 mounting nut●Outlet connection: 9/16-18UNF male●Valve: None●Operating gas: Carbon dioxide, mag gas●Operating temperature range (℃): -10 to 40●Pressure gauge (MPa)_Inlet side: None●Pressure gauge (MPa)_Outlet side: None●Exhaust valve: Yes●Structure: Two-stage pressure reducing type●Flowmeter specifications_Units L/min (nor): 5 to 20●Flowmeter specifications_Set pressure MPa: 0.2●Flow rate adjustment range 5 to 20 L/min●Fitting shape: W22-14 mounting nut (inlet), 9/16-18UNF hose fitting base (outlet) Material/Finish: ●Brass●C3771 Caution: ●Cannot be used with siphon type containers. ●Hose nozzle and cap nut are not included, so please order separately if you are using it for the first time or if you want to replace the entire hose nozzle. ●Flow meter specifications of 5 to 20 L/min (nor) are for an ambient temperature of -10 to 40°C, a usage rate of 60% or less (10-minute rating) for carbon dioxide, and 100% usage rate for MAG gas.
