Nippon Sanso TANAKA NewStop-A FA-210A LQN445 1 piece

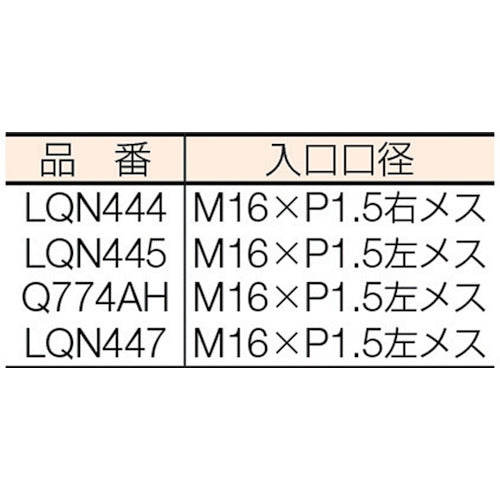

Catalog number: LQN445 Features: ●Lightweight and compact flashback arrestor. ●Includes product liability insurance. ●Equipped with backflow prevention, flashback prevention, and cut-off functions. ●Robust and lightweight, ultra-compact size ●"Completely sealed" type that can be installed outdoors or indoors (factories, research laboratories, laboratories, etc.) ●Fully equipped with the three major mechanisms of "flashback prevention," "backflow prevention," and "cut-off" ●Extremely simple and easy handling, including installation and resetting ●Certified by the Technology Association of Industrial Safety (public corporation) (Type certification approval number: TIIS-YT0008) Uses: ●For flashback prevention. Specifications: ● Suitable gas: Acetylene ● Operating pressure (MPa): 0.01 to 0.13 ● Inlet connection shape: M16 x 1.5 left hose port nut ● Model: FA-210A ● Inlet/outlet diameter: 8A ● Outlet shape: M16 x 1.5 left hose joint base ● External dimensions (length x external): 72 mm x φ29 mm ● Equipped mechanism: Backfire prevention mechanism, backflow prevention mechanism, cut-off mechanism ● (Company) Industrial Technology Safety Committee certified product TIIS-YT0008 (LQN445) ● Outlet diameter: M16 x P1.5 left male Material / Finish: ● Brass ● C3604
