Asahi EAZY WELD Stainless Steel + Copper Rod SUS-CO 5 pieces/set 1055 1 set
Asahi EAZY WELD Stainless Steel + Copper Rod SUS-CO 5 pieces/set 1055 1 set
Regular price
¥18,480
Regular price
Sale price
¥18,480
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

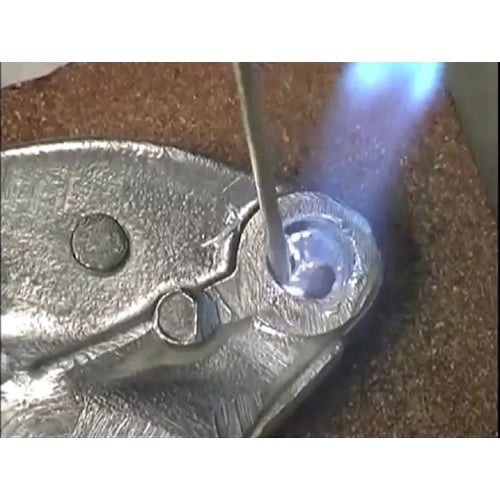

Catalog number: 1055 Features: ●Easy welding without equipment, with strength about 5 times that of soldering. ●Heat the base material to the working temperature of the various rods (welding rods). ●Rods for iron (CAS450)/stainless copper (SUS-CO) can also be used with a soldering iron. ●Keep the base material at an appropriate rod melting temperature. ●Rub the rod against the base material to melt it at the temperature of the base material and perform the repair work. ●Allow the melted rod to cool naturally for about 1 minute until it loses its luster. Specifications: ●Type: For stainless steel + copper ●Capacity: 5 times stronger than solder ●Shear strength (PSI): 11600 ●Tensile strength (PSI): 25000 (stainless steel), 14000 (copper) ●Conductivity (%IACS): 16.4 ●Heat resistance temperature (℃): 221 ●Stainless steel + copper rod 5 pieces/set ●Size (wire diameter x length): φ3 x 450mm (only product number 1056 is 5 x 5 x 350mm) Material/Finish: ●Tin ●Silver Caution: ● Leaving scraped-off iron filings behind when working can cause corrosion.● Be careful not to overheat the base material and melt it. For aluminum over 5mm thick, it is very difficult to maintain the working temperature with the provided gas burner, so please use acetylene gas. If the base material is difficult to heat up, placing fireproof bricks under it will increase efficiency.● Do not directly expose the rod (welding rod) to flame.● Rapid cooling with water etc. will significantly reduce its strength. Blowing air when it is not yet solidified will cause it to fly off, which is very dangerous. If it overheats (gets too hot), it will be repelled and will no longer be able to be welded.● Be sure to use "All-purpose Flux MF" (sold separately) when working.
