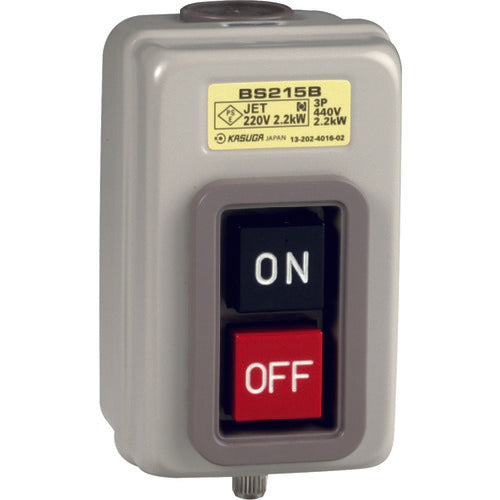

Catalogue number: BS215B3 Features: ●A type with an iron case that is attached to indoor machines or walls. ●Complies with the Electrical Appliance and Material Safety Act. Applications: ●Power push button switch ON, OFF. Specifications: ●Button characters: ON, OFF ●Maximum applicable motor capacity: Three-phase 200/220V-2.2kW ●Length (mm): 52 ●Width (mm): 92.5 ●Height (mm): 53.5 ●Terminal screw: M4 ●Compatible wire (［［MM2］］): 2 ●Terminal screw M4 ●Rating (A): 15 ●On/off type Material/Finish: ●Steel plate ●Paint color: 5Y7/1
