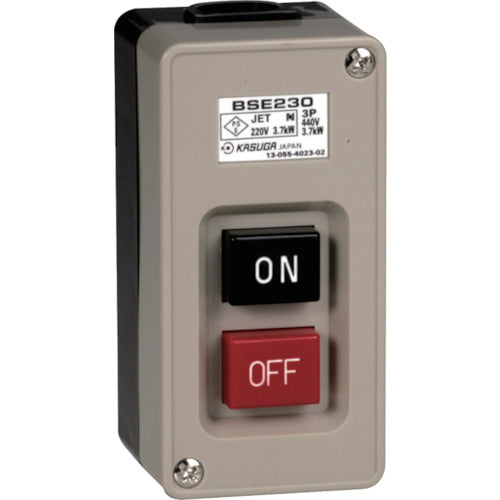

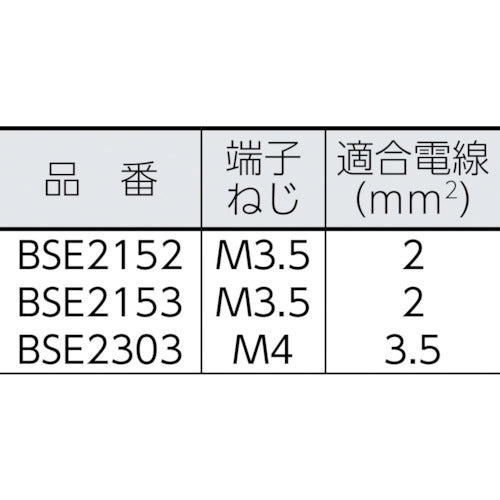

Catalogue number: BSE2303 Features: ●Since the case is made of plastic, it does not require earthing. ●Complies with the Electrical Appliance and Material Safety Act. Applications: ●Power push button switch ON, OFF. Specifications: ●Button characters: ON, OFF ●Maximum applicable motor capacity: Three-phase 200/220V-3.7kW ●Length (mm): 45 ●Width (mm): 93 ●Height (mm): 44.5 ●Terminal screw: M4 ●Compatible wire (［［MM2］］): 3.5 ●Terminal screw M4 ●Rating (A): 30 Materials/Finish: ●Case: ABS resin (black) ●Cover: ABS resin (equivalent to 5Y7/1)
