Kasuga Electric power switch BSW315B3 BSW315B3 1 piece

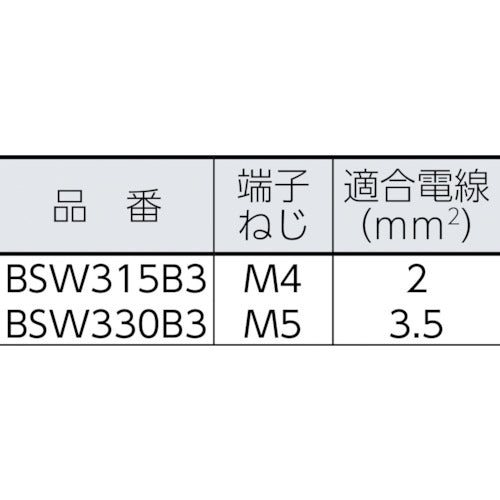

Catalogue number: BSW315B3 Features: ●Rainproof type. ●Protection class IP64 (JIS C 0920). ●Can switch between forward and reverse rotation of the motor. ●Complies with the Electrical Appliance and Material Safety Act. Applications: ●Power push button switch, forward and reverse. Specifications: ●Number of buttons: 3 ●Button characters: FOR, STOP, REV ●Maximum applicable motor capacity: Three-phase 200/220V-2.2kW ●Length (mm): 68 ●Width (mm): 203 ●Height (mm): 82 ●Terminal screw: M4 ●Compatible wire (［［MM2］］): 2 ●Terminal screw M4 ●Rating (A): 15 ●Reversible type Material/Finish: ●ABS resin (equivalent to 5Y7/1)
