Kasuga Electric power switch BSW330B3 BSW330B3 1 piece

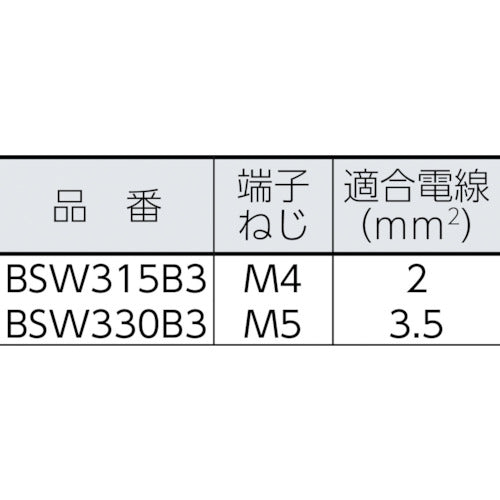

Catalogue number: BSW330B3 Features: ●Rainproof type. ●Protection class IP64 (JIS C 0920). ●Can switch between forward and reverse rotation of the motor. ●Complies with the Electrical Appliance and Material Safety Act. Applications: ●Power push button switch, forward and reverse. Specifications: ●Number of buttons: 3 ●Button characters: Forward, Stop, Reverse ●Maximum applicable motor capacity: Three-phase 200/220V-3.7kW ●Length (mm): 80 ●Width (mm): 224 ●Height (mm): 88 ●Terminal screw: M5 ●Compatible wire (［［MM2］］): 3.5 ●Terminal screw M5 ●Rating (A): 30 ●Reversible type Material/Finish: ●ABS resin (equivalent to 5Y7/1)
