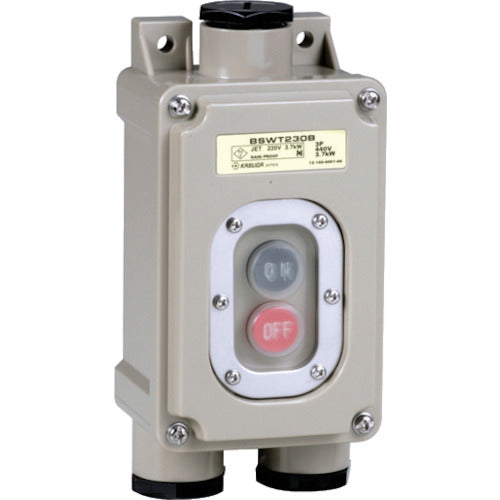

Kasuga Electric power switch BSWT230B3 BSWT230B3 1 piece
Kasuga Electric power switch BSWT230B3 BSWT230B3 1 piece
Regular price
¥8,226
Regular price
Sale price
¥8,226
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: BSWT230B3 Features: ●Power push button switch, rainproof type. ●Protection structure IP65 (JIS C 0920). ●Can switch motors ON/OFF. ●Complies with the Electrical Appliance and Material Safety Act. Applications: ●For turning motors ON and OFF. Specifications: ●Number of buttons: 2 ●Button characters: ON OFF ●Maximum applicable motor capacity: Three-phase 200/220V-3.7kW Three-phase 400/440V-3.7kW ●Length (mm): 174 ●Width (mm): 83 ●Height (mm): 67 ●Terminal screw: M5 ●Compatible wire ([[MM2]]): 3.5 ●Included character plate: ON OFF ●Rating (A): 30 ●Terminal screw M5 ●Button characters: ON OFF Materials/Finish: ●Body: ABS resin (equivalent to 5Y7/1) ●Packing: Elastomer
