Kasuga Electric Operation Push Button Switch WBST222 WBST222 1 pc

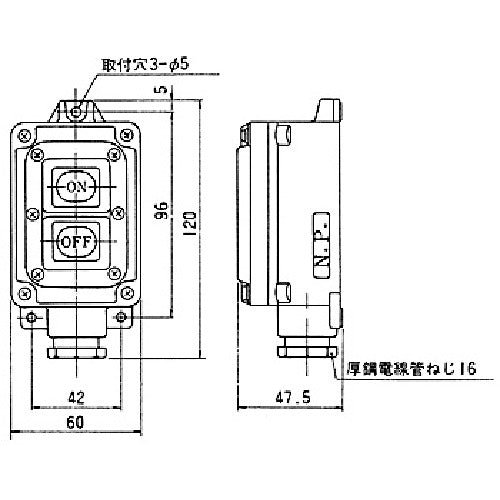

Catalog number: WBST222 Features: ● Push button switch for operating electromagnetic switches. ● Rainproof type. ● Protective structure IP65 (JIS C 0920). ● Compliant with the Electrical Appliance and Material Safety Act. Applications: ● Push button switch for operating electromagnetic switches (ON, OFF). Specifications: ● Number of buttons: 2 ● Button characters: ON, OFF ● Length (mm): 60 ● Width (mm): 120 ● Height (mm): 47.5 ● Terminal screws: M3.5 self-up screws ● Compatible wire ([MM2]): 1.25 ● Length x width x height (mm): 60 x 120 x 48 ● Rating: AC250V-5A, AC500V-1A ● Rating: AC250V-5A ● Terminal screws M3.5 Materials/Finish: ● Case: ABS resin (black) ● Cover: ABS resin (equivalent to 5Y7/1)
