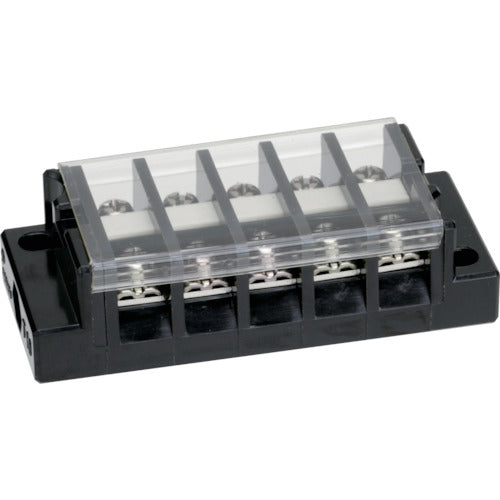

Kasuga Denki assembly terminal block T1004 T1004 1 piece

Catalog number: T1004 Features: ● Terminal block pre-assembled with the required number of poles. ● Terminal cover and name sticker included. Applications: ● As a relay terminal block for various sensors, signals, and power supplies. Specifications: ● Color: Black ● Number of poles: 4 ● Length (mm): 62 ● Width (mm): 30 ● Height (mm): 21 ● Type: For screw-type relay ● Rating: 250V-20A ● Terminal screw M3.5 ● Commercial frequency withstand voltage: 2000V for 1 minute ● Impulse withstand voltage: 4000V ● Suitable wire: 0.75 to 2m [M2] Material/Finish: ● Body: Phenol ● Cover: Polycarbonate
