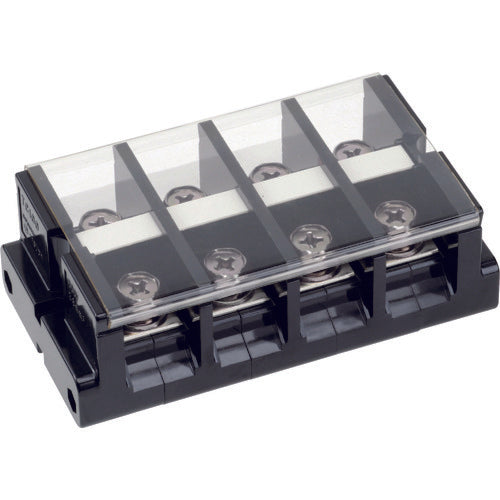

Kasuga Denki assembly terminal block TC100C04 TC100C04 1 piece

Catalog number: TC100C04 Features: ● Terminal block pre-assembled with the required number of poles. ● Terminal cover and name sticker included. Applications: ● As a power supply/relay terminal block. Specifications: ● Color: Black ● Number of poles: 4 ● Length (mm): 132 ● Width (mm): 71 ● Height (mm): 45.5 ● Type: For screw-type relay ● Rating: 600V-130A ● Terminal screw M8 ● Commercial frequency withstand voltage: 2500V for 1 minute ● Impulse withstand voltage: 6000V ● Suitable wire: 22 to 38m [M2] Material/Finish: ● Body: Phenol ● Cover: Polycarbonate
