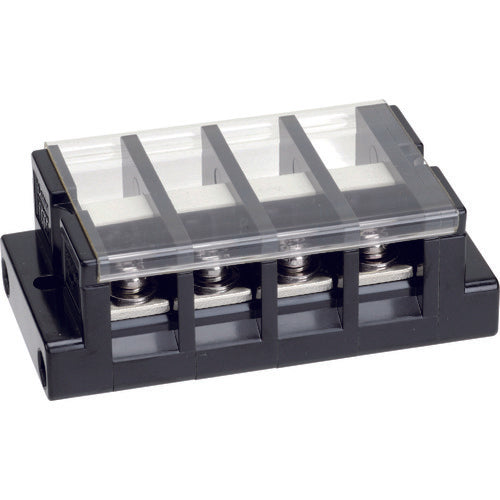

Kasuga Denki assembly terminal block TC60C04 TC60C04 1 piece

Catalogue number: TC60C04 Features: ● Terminal block pre-assembled with the required number of poles. ● Terminal cover and name sticker included. Applications: ● As a power supply/relay terminal block. Specifications: ● Color: Black ● Number of poles: 4 ● Length (mm): 100 ● Width (mm): 53 ● Height (mm): 35 ● Type: Self-up ● Rating: 600V-70A ● Rated insulation voltage (V): 600 ● Mounting pitch (mm): 88 ● Terminal screw M5 ● Commercial frequency withstand voltage: 2500V for 1 minute ● Impulse withstand voltage: 6000V ● Suitable wire: 5.5 to 14m [M2] Material/Finish: ● Body: Phenol ● Cover: Polycarbonate
