Kasuga Electric Co., Ltd. Push button switch for indirect operation of electric motors COB64 COB64 1 unit

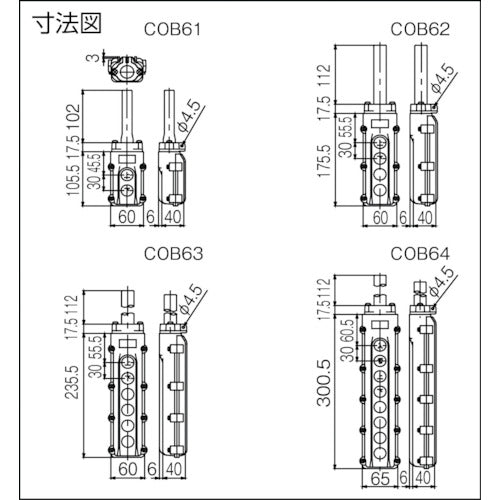

Catalogue number: COB64 Features: ● Push button switch operated via an electromagnetic switch. ● Protection class IP65 (JIS C 0920). ● Compliant with the Electrical Appliance and Material Safety Act. Applications: ● Push button switch for operating an electromagnetic switch. Specifications: ● Number of buttons: 8 ● Button characters: On, Off, Up, Down, East, West, South, North ● Length (mm): 74 ● Width (mm): 318 ● Height (mm): 49 ● Rating: AC250V-5A ● Contact configuration 1a-Off-1a-1a-1a-1a-1a-1a-1a Material/Finish: ● ABS resin (equivalent to 7.5YR7/13)
